How to turn off the running lights (Scandinavian light) Nissan Patrol 2002

What is "Scandinavian light", or daytime running lights



The rule of headlights on during the day was one of the first to be introduced in the Scandinavian countries. Over time, accident reduction statistics have shown that this is an effective method of drawing attention to cars on the road and other countries have begun to introduce this rule. After that, the legislation obliges drivers to drive with their lights on. Car manufacturers, in turn, at the legislative level, must ensure that on all cars, without exception, the dipped beam headlights are turned on automatically when the car is moving.

But in some countries, this rule does not apply, or only applies for a certain period of time. Therefore, in order to save the car's headlights from excessive use of light, fuel and excessive load on the generator, we offer this article - instructions for turning off automatic daytime running lights on a 2003 Nissan Patrol.





Instructions for unlocking automatic daytime running lights on Nissan Patrol 2003

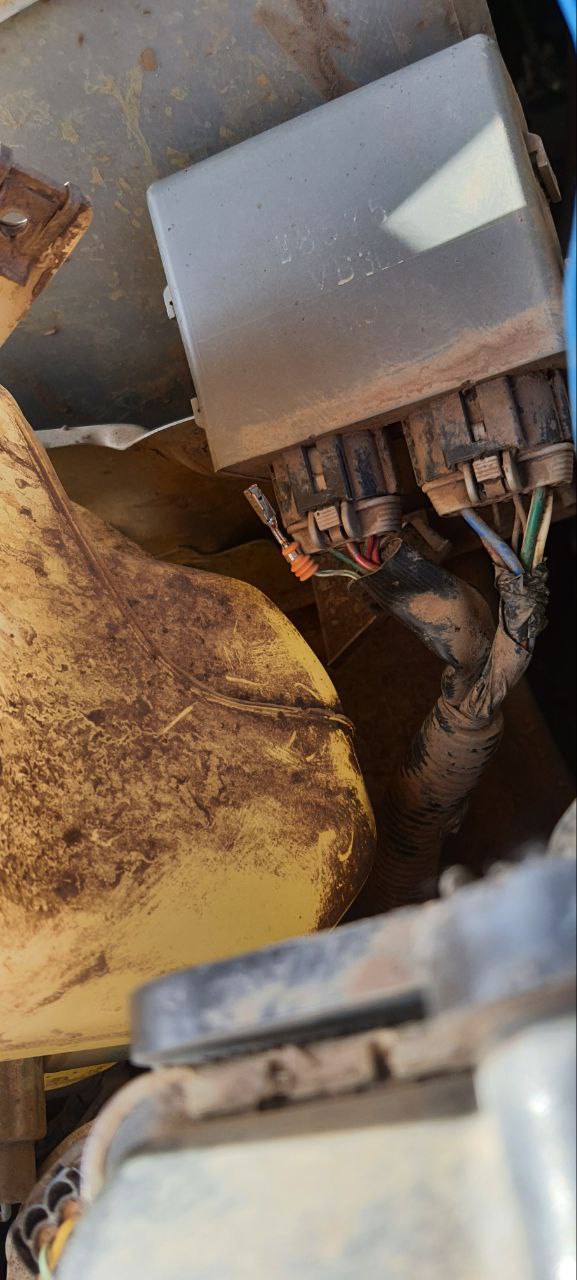

1. Open the hood and remove the washer tank. The running lights relay should be visible.



This is what the relay looks like:





2. Remove the relay from the mount and disconnect the connectors.





3. We find the pin that is responsible for providing information about starting the engine. Power will appear on it at startup.

We explain simply:

• the engine is running - there is power;
• dead engine - no power.

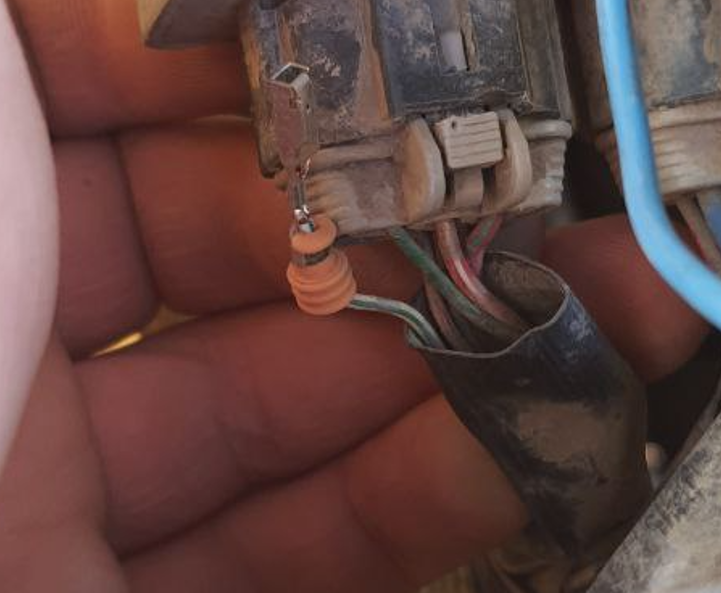

This "information wire" turned out to be a white-green color:

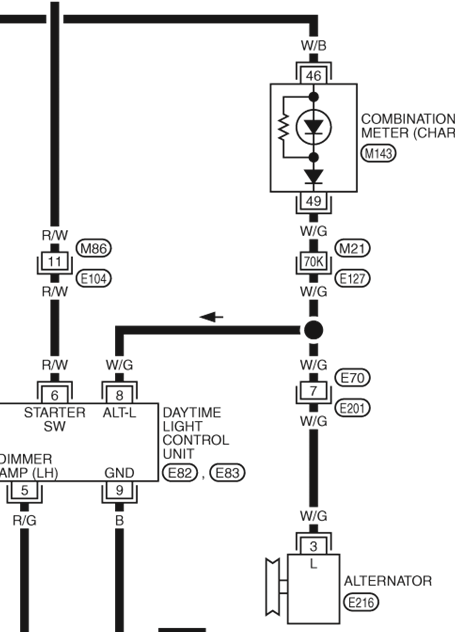

4. We check according to the scheme , although it would be possible to start immediately from the scheme, but everyone has their own approach to the search)).

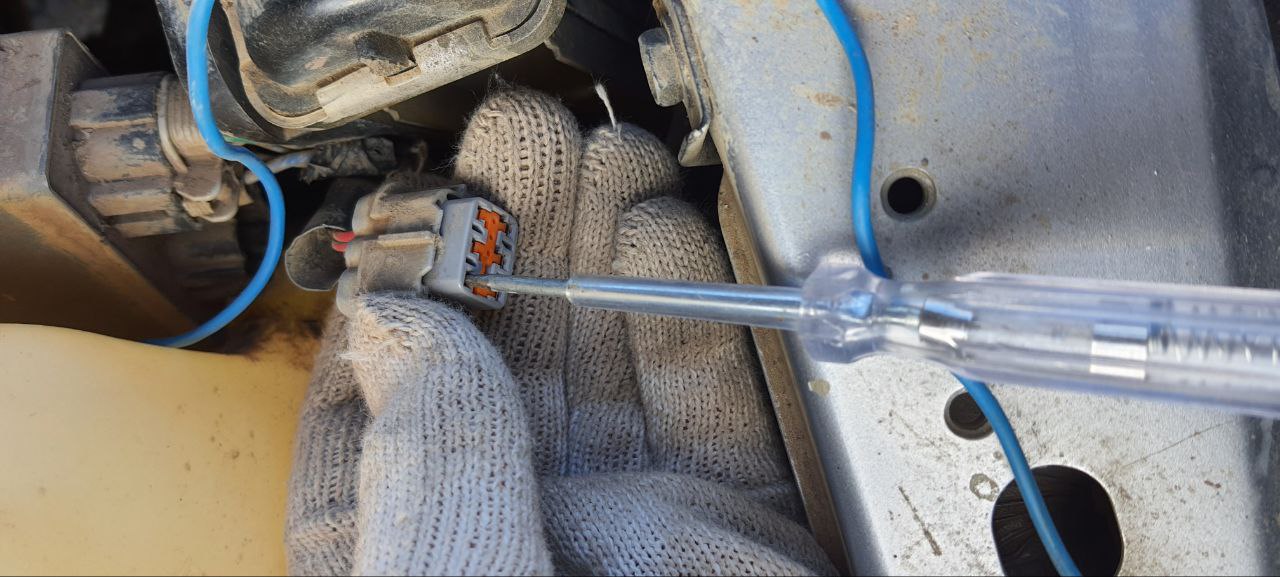

5. We make sure that the 8th pin receives information from the generator, that is, when there is a charge, the generator functions correctly, and the daytime running lights work.





6. After that, remove the pin from the connector. Now the daytime running light relay will not turn on the dipped beam when the engine is running.



7. Lubricate the free space for the foam with grease to prevent moisture from entering, and isolate the foam as best as possible so that it does not oxidize.





We collect everything - we use it!
