Trapezoidal piston and connecting rod

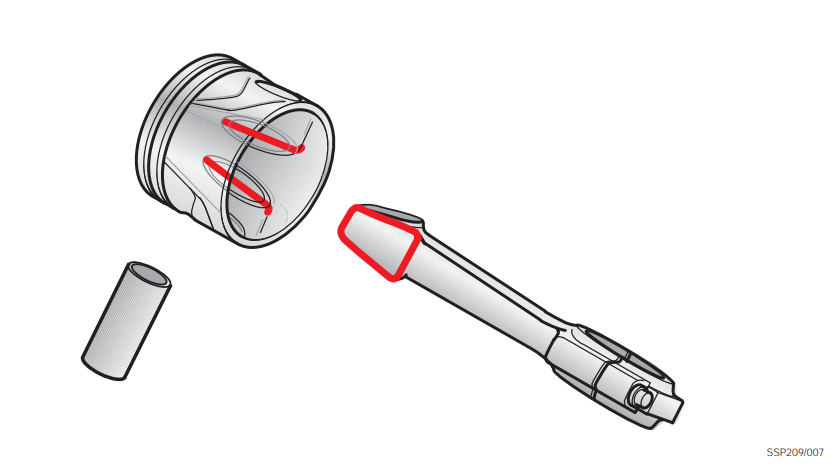

The piston hub and connecting rod lug have a trapezoidal shape. This ensures high combustion pressure in the 1.9-liter engine.

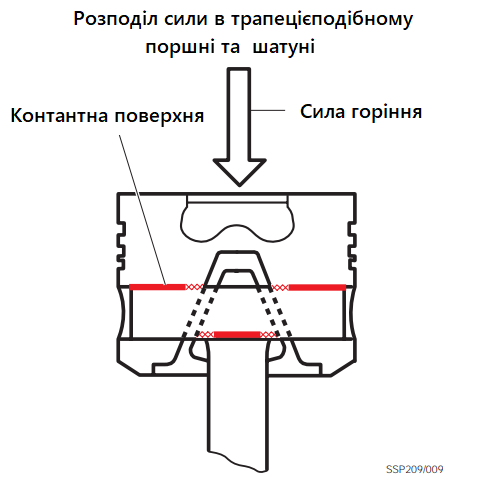

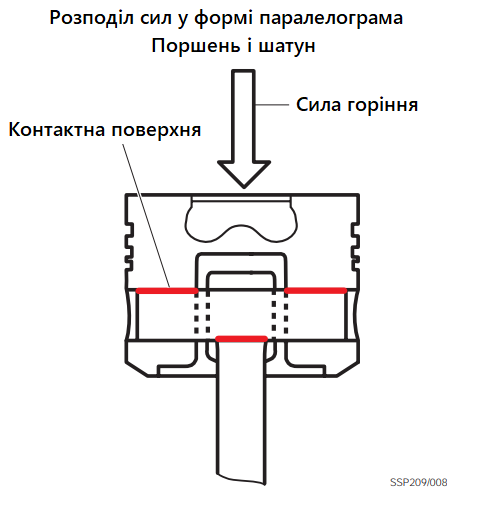

Compared to a conventional link in the form of a parallelogram between the piston and the connecting rod, the trapezoidal lug of the connecting rod and the piston hub have a larger contact surface area on the piston pin due to its shape.









The combustion process takes place over a larger area, and this relieves the load on the piston pin and connecting rod.
