Description

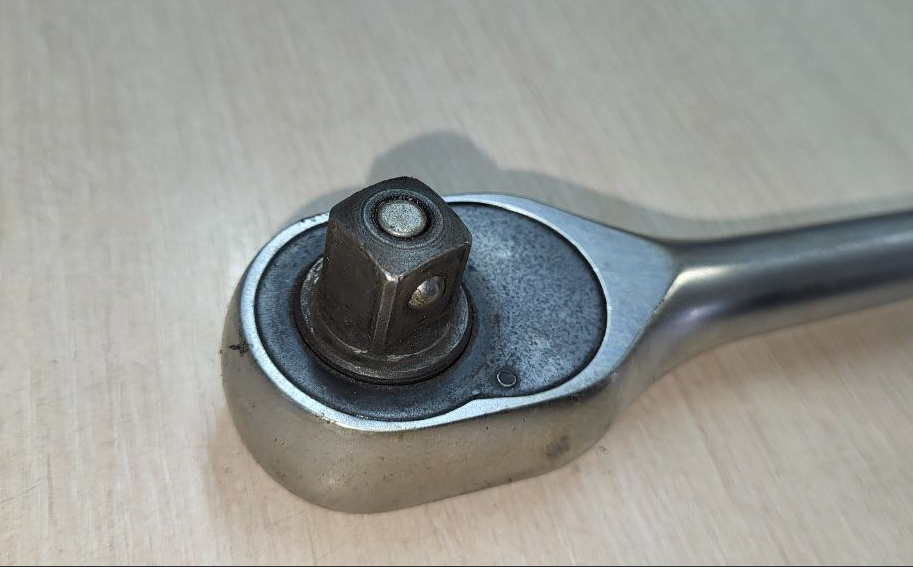

If you notice that your TOPTUL CJBG1627 ratchet is not working properly - for example, it does not fix the position well, does not switch positions, slips when screwing or unscrewing, or other problems that do not involve damage to the integrity of the tool body. If you have a similar situation, do not rush to buy a new one. Often such problems can be solved by replacing the repair kit.









Replacing a repair kit is a simple and effective way to restore the efficiency and reliability of your tool. We will provide detailed instructions and photos to make this process as clear and accessible as possible for anyone who needs this information.





The instructions for replacing the repair kit include the following steps:



Preparation for work:



• Wipe the tool well before disassembly.
• Make sure the rattle is in a clean, dry place with plenty of light.
• Prepare the work area and place the repair kit on a clean surface.



Dismantling the old repair kit:

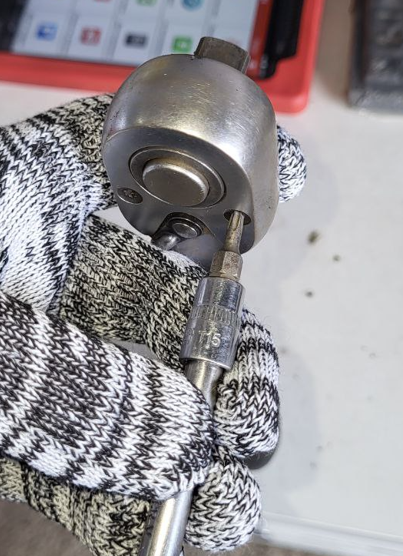

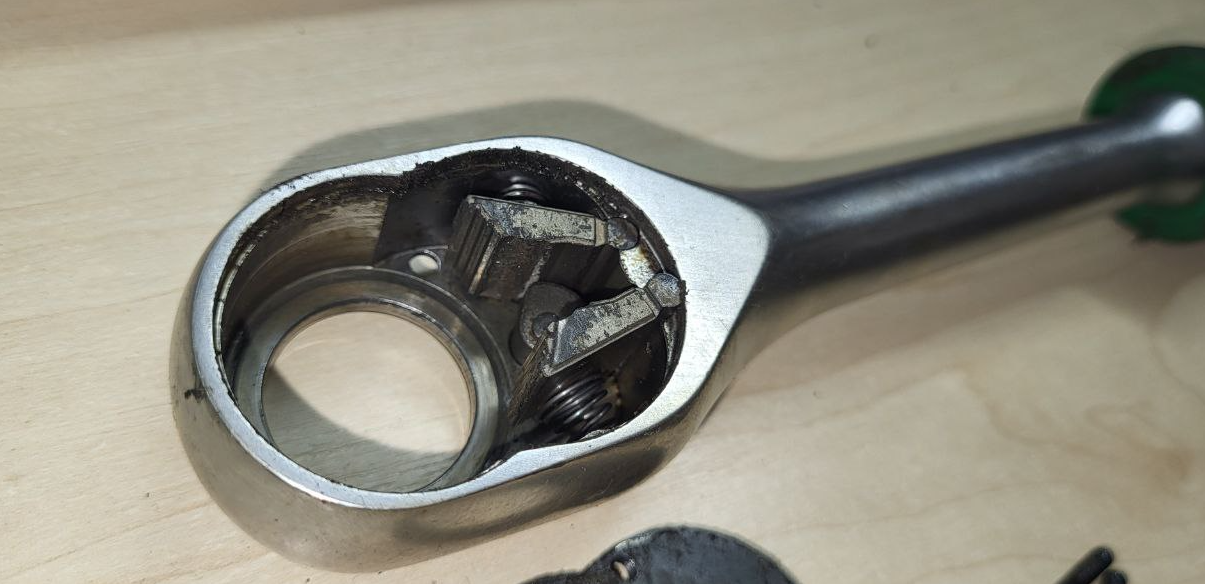

• Carefully disassemble the ratchet by removing the protective cover and removing the internal components.





• Take a picture or remember the position of the parts of the mechanism.





• Take tweezers or another suitable tool to carefully remove the old springs, washers and other elements that are in the new repair kit.

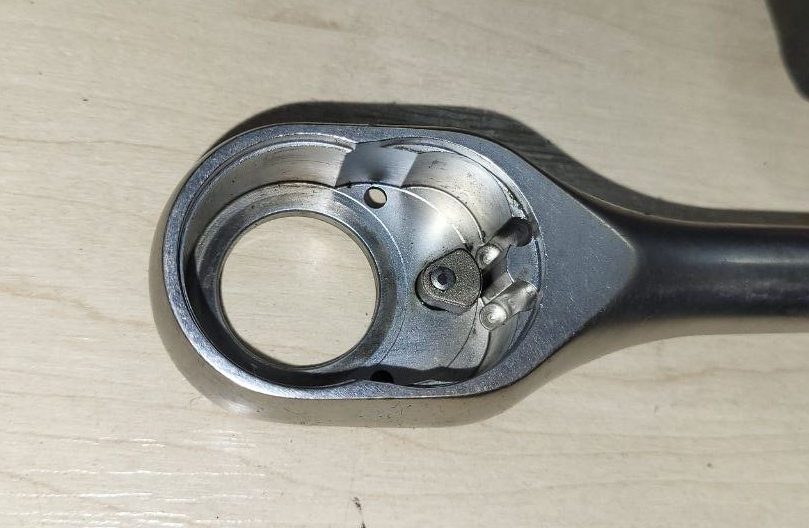

• Clean all surfaces of old grease and dirt.





Installing a new repair kit:



• Apply a thin layer of liquid lubricant to all moving parts of the repair kit, this may be WD-40.

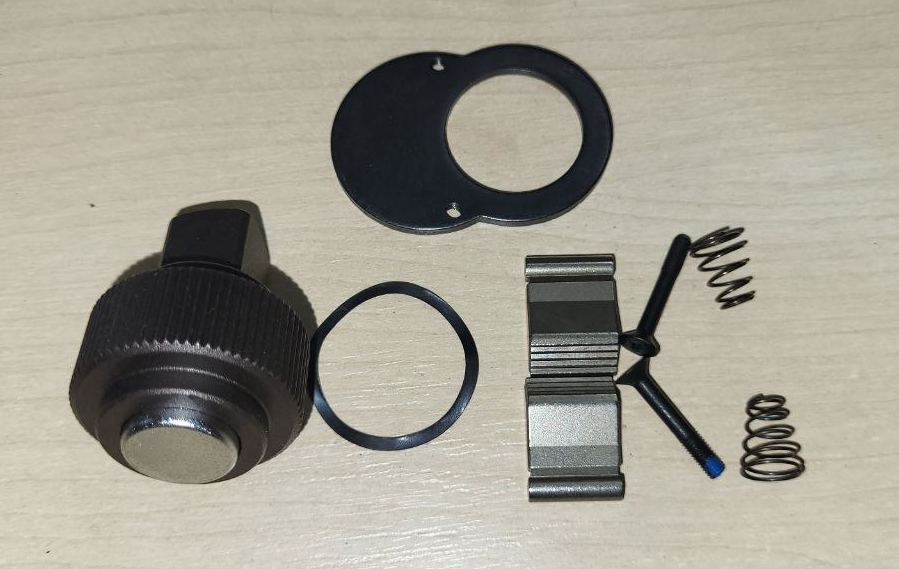

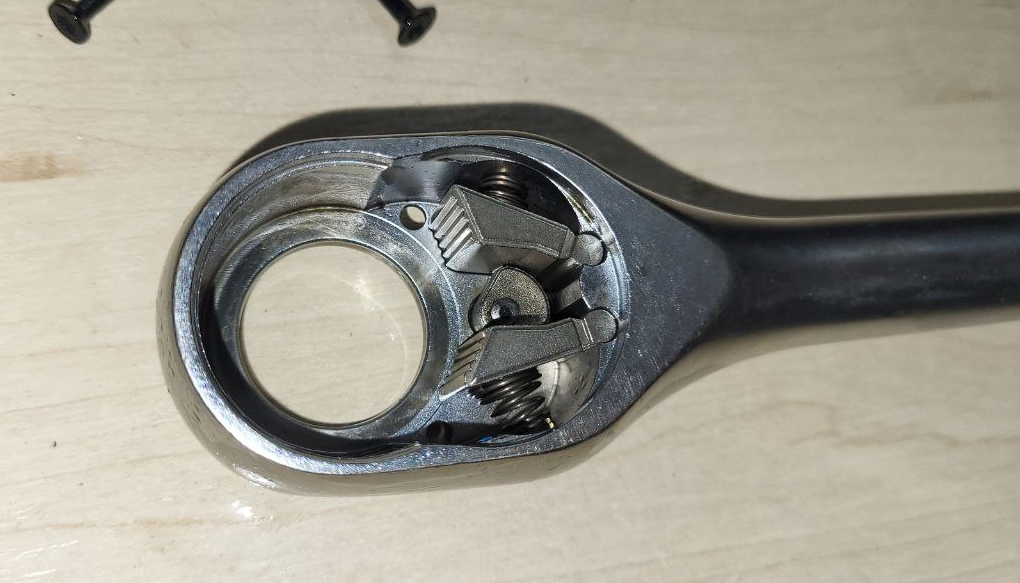

• Install new springs, washers, and other items from the repair kit into the corresponding grooves and holes of the ratchet.







• Make sure all parts are installed correctly and rotate or move without effort.



Ratchet assembly:

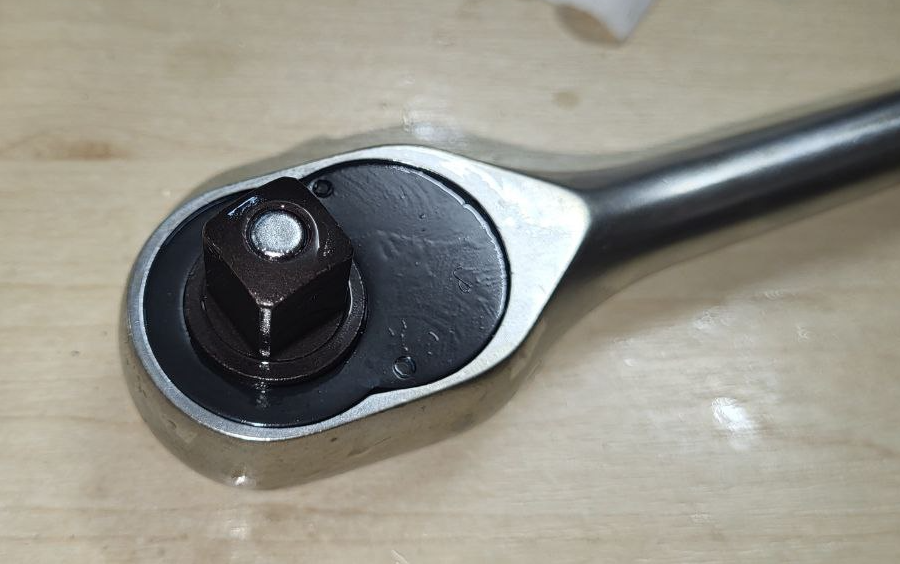

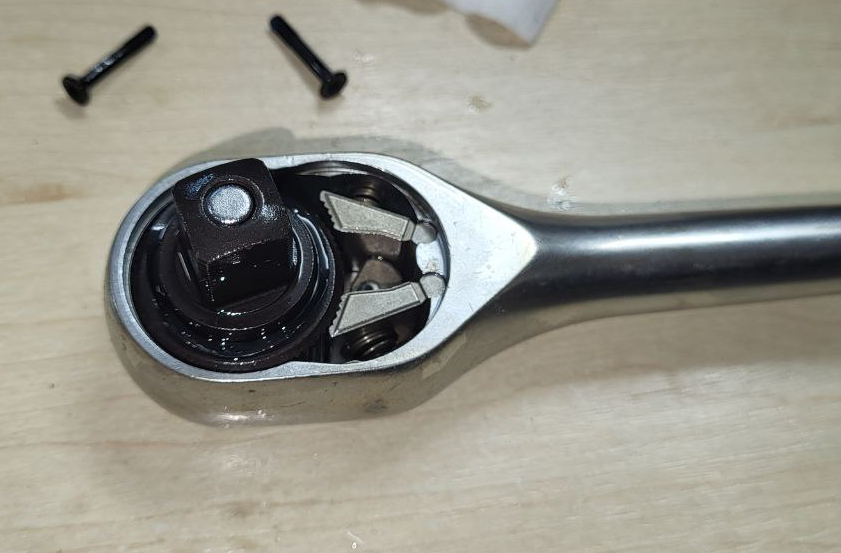

• After installing the new repair kit, reassemble the ratchet, making sure all parts are in place.
• Install the protective cover on the ratchet.





• Check the mechanism for proper operation by checking the reversing mechanism and quick release.





Ratchet testing:



• Test the reversing mechanism by pressing on the handle and turning it in both directions.
• Try installing and removing the nozzle head to make sure the quick release mechanism is working properly.



Cleaning and maintenance:



• Clean the ratchet from excess grease.
• Check that there are no extra parts and tools left at the workplace.
• After completing these steps, your ratchet should be ready to use with the new repair kit.
